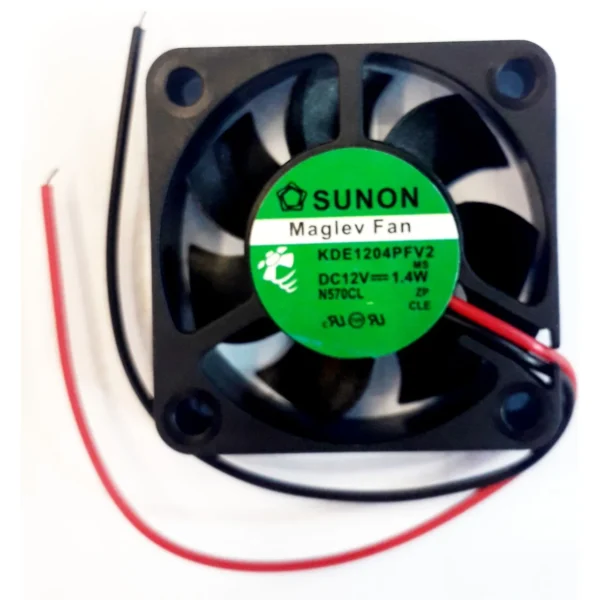

فن 12 ولت 1.4 وات 4 در 4 SUNON (DVR)

توضیحات

فن 12 ولت 1.4 وات 4 در 4 SUNON (DVR)

پارت نامبر : kde1204pfv2
ضخامت : 1سانتی متر
ولتاژ : 12DC
مناسب برای دستگاه دی وی آٖر (DVR)
بلبرینگی

Manufacturer
SUNON

Type of fan
DC

Operating voltage
6…13.8V DC

Fan dimensions
40x40x10mm

Power consumption
1W

Current rating
80mA

Fan efficiency
11.89m3/h

Noise level
27dBA

Kind of Bearing
Vapo

Rotational rate/speed
5800 (±20%)rpm

Current and power consumption tolerance
±15%

Min. insulation resistance
500MΩ

Impeller material
thermoplastic

Enclosure material
thermoplastic

Insulation class
E

Leads
lead x2

Operating temperature
-10…70°C

Cable length
0.3m

Flammability rating
ECE R-118:
This regulation applies to fire testing of materials used in the interiors
of motor vehicles, such as upholstery, floor coverings, etc.

UL94:
This standard is used to assess the flammability of plastic materials
used in various industries, including the electronics, automotive
and construction sectors.
UL94V-0

Additional functions
autorestart

Fan motor
brushless DC

Static pressure
3.3mm H2O

Wire size
28AWG
