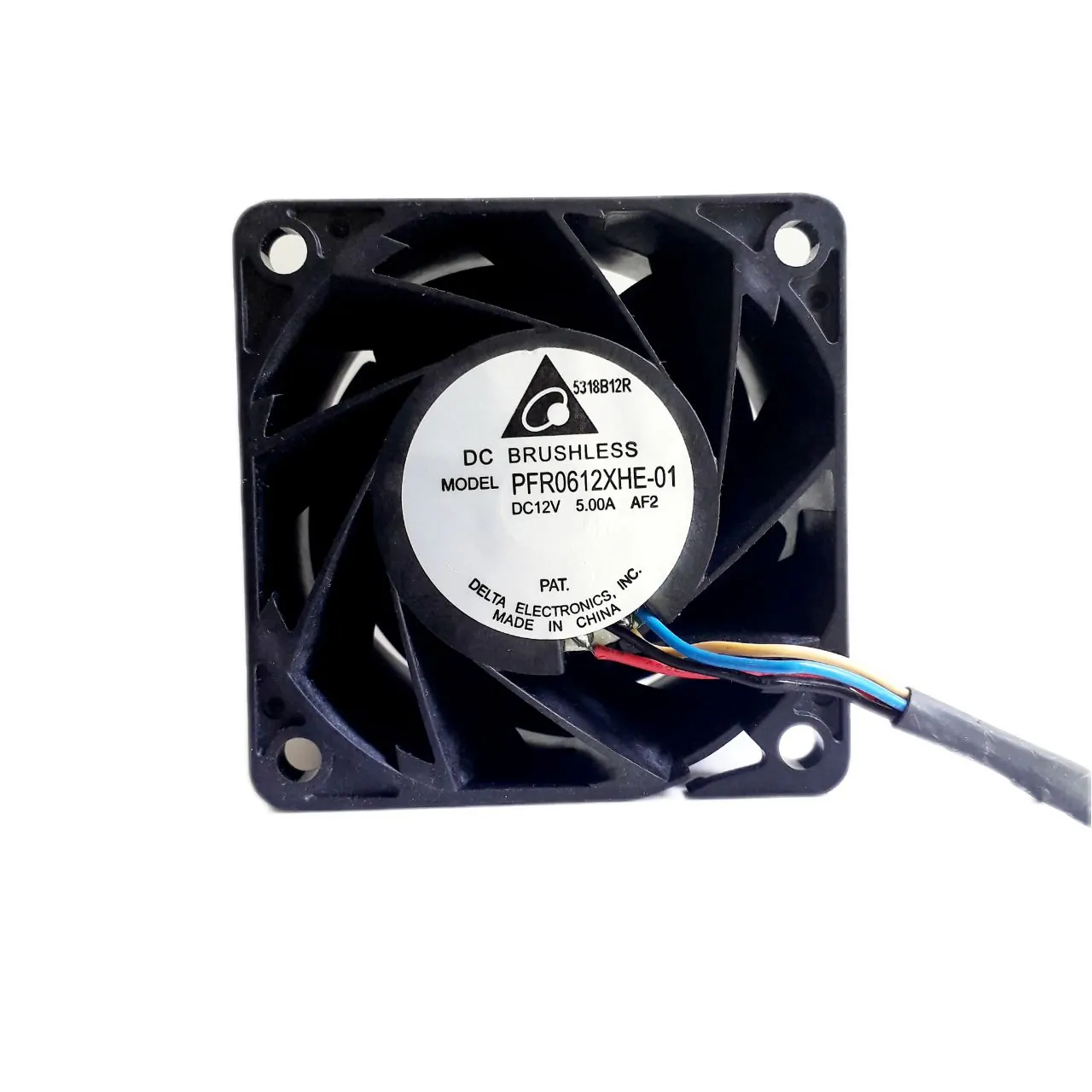

جت فن 6 در 6 دلتا 12 ولت 5 آمپر

توضیحات
جت فن 6 در 6 دلتا 12 ولت 5 آمپر
دیتاشیت

پارت نامبر : PFR0612XHE-01

Product Attributes.
Series
PFR
Part Status
Enabled
Voltage Rated
12 VDC
Size / Dimension
Square-60mm L X 60mm H
Width
38.00mm
Air Flow
76.16 CFM (2.157 m3/min)
Static Pressure
3.185 inchH2O (80.90 mmH2O)
Bearing Type
Ball
Fan Type
Axial
Features
—
Noise
67.7توضیحات
جت فن 6 در 6 دلتا 12 ولت 5 آمپر
دیتاشیت

پارت نامبر : PFR0612XHE-01

Product Attributes.
Series
PFR
Part Status
Enabled
Voltage Rated
12 VDC
Size / Dimension
Square-60mm L X 60mm H
Width
38.00mm
Air Flow
76.16 CFM (2.157 m3/min)
Static Pressure
3.185 inchH2O (80.90 mmH2O)
Bearing Type
Ball
Fan Type
Axial
Features
—
Noise
67.7 dB(A)
Power (Watts)
27.60 W
RPM
16500 RPM
Termination
2 wire leads
Ingress Protection
—
Operating Temperature
-10~+70⁰C
Weight gram (g)
130g
Current Rating
2.30 A
Voltage Rating
7.0 – 13.2 VDC
Material Frame
Plastic
Material Blade
Plastic
Lifetime @ Temp
70000 Hrs@40°C
دیدگاه کاربران dB(A)
Power (Watts)
27.60 W
RPM
16500 RPM
Termination
2 wire leads
Ingress Protection
—
Operating Temperature
-10~+70⁰C
Weight gram (g)
130g
Current Rating
2.30 A
Voltage Rating
7.0 – 13.2 VDC
Material Frame
Plastic
Material Blade
Plastic
Lifetime @ Temp
70000 Hrs@40°C
